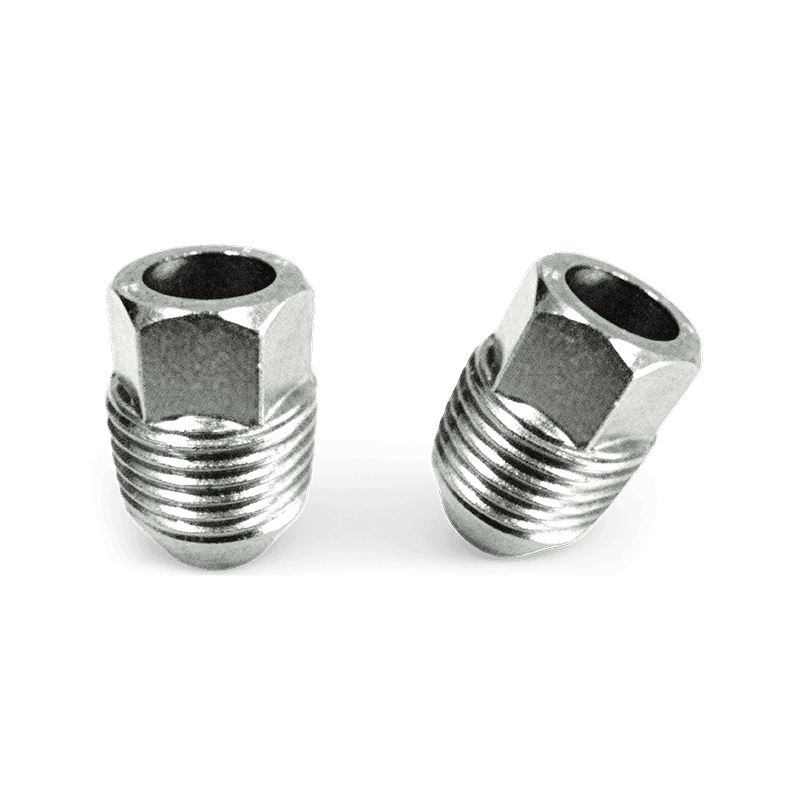

WF-N086 Male Thread Hollow Hex Connector Banjo Bolt combines a hollow flow passage, external thread and hexagonal connection head in a compact configuration. Its banjo-style joint allows flexible hose or pipe positioning while maintaining a secure threaded connection, making it suitable for automotive and mechanical systems where space efficiency and fluid routing are required.

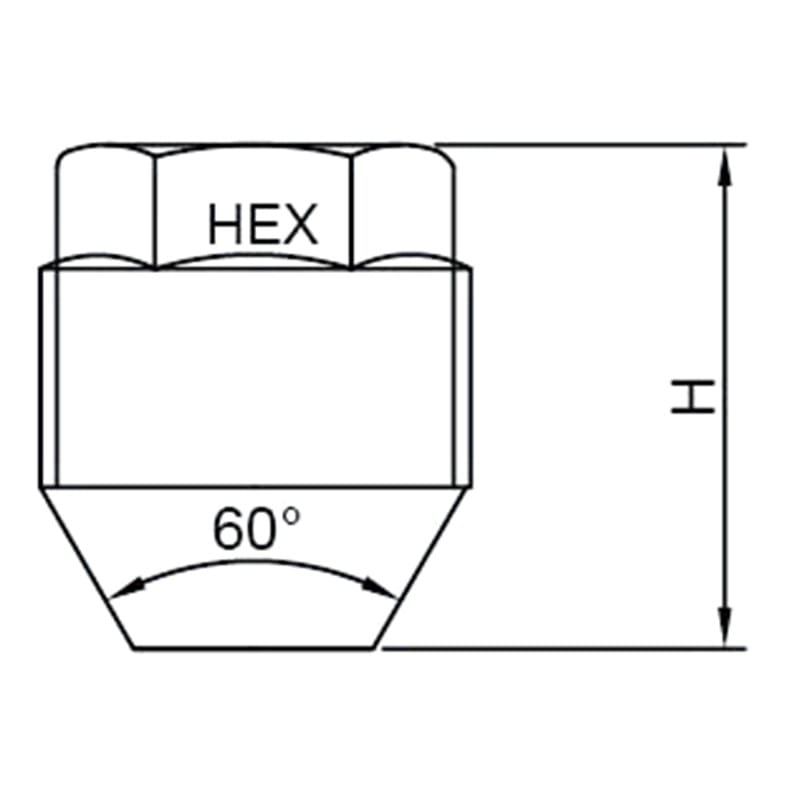

| NO. | HEX | HEIGHT |
| 1 | 19mm | 31mm |
| 2 | 3/4° | 31mm |
The bolt can be manufactured from alloy steel, stainless steel or other suitable engineering materials according to application requirements. Precision turning, drilling, threading and hex forming processes are used to achieve dimensional consistency. The internal bore is accurately machined for smooth fluid passage, while the male thread is processed for dependable mating with compatible components. Anti-corrosion coatings or plating can be applied for improved durability.
Male Threaded Connection: Designed for direct engagement with compatible threaded ports or components.
Hollow Flow Passage: Provides an internal route for fluid transmission.
Hex Connector Head: Allows convenient tightening and removal with standard tools.
Banjo Joint Configuration: Supports flexible orientation of connected hoses or pipes.
Space-Saving Design: Well suited to compact assemblies and confined installation areas.
WF-N086 Male Thread Hollow Hex Connector Banjo Bolt is suitable for automotive brake lines, hydraulic circuits, lubrication systems, fuel delivery assemblies and various mechanical fluid-routing applications. Its compact banjo configuration is particularly useful where pipe orientation, service access and efficient installation space are important.
Ningbo Wheel Friends Auto Parts CO., LTD. is specialized in producing auto wheel accessories, product type are the wheel, nuts, bolts, Locking Nuts and Bolts, wheel spacer, Tire Valves, Wheel Sockets, Wheel Balancing Weights, Central Rings, etc.
With strong technical force, the company has the advanced production technology and testing equipments, the company insists on "quality first, innovation" the management ideas, by the good faith, "the product quality" strives for the subsistence, the company pays attention to the quality management and personnel, strict execution ISO/TS 16949 quality management standards. Constantly develop new products to meet the market demand. The company exported to Europe, the United States, Australia, The Asian, the Middle East and other countries and regions, favored by domestic and foreign customers.
Customer satisfaction is our development the greatest power ， provide the best value is our development objective, we sincerely welcome the customers from home and abroad to visit and guide and cooperate!
